Detectors signals cables

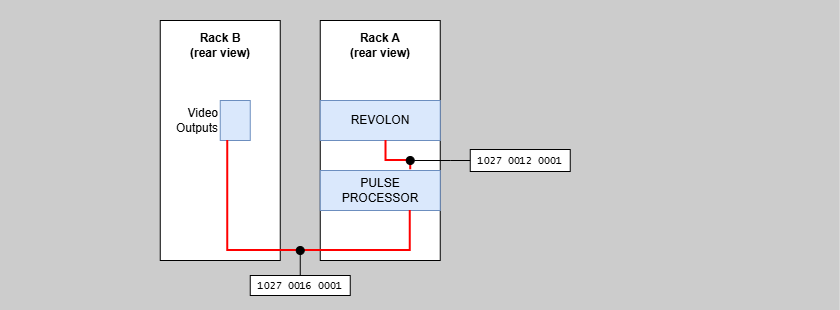

Digital/counting signal only

Install the 1027 0012 0001 counting cable from the 100 MHz DIGITAL input connector at the back of the REVOLON controller, to the Pulse processor digital/pulse output. Standard cable provides up to four digital signal connector, custom cables can be made up to 12 digital signals.

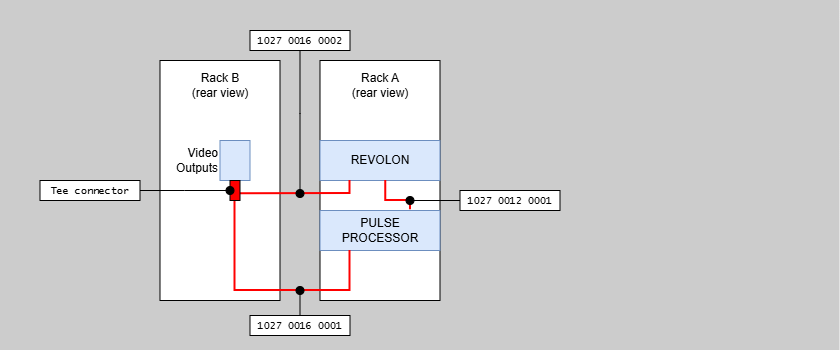

Analog and digital signal

Install both sets of cables, using the supplied BNC Tee connectors to split the analog signal at the TEM video output

• up to four 1027 0016 0002 video signal cables from the A1, A2, A3 and/or A4 input connectors from the INPUTS - 100 MHz ANALOG group at back of the REVOLON controller, to the TEM video outputs.
• the 1027 0012 0001 counting cable from the 100 MHz DIGITAL input connector at the back of the REVOLON controller, to the Pulse processor digital/pulse output.
