Scope

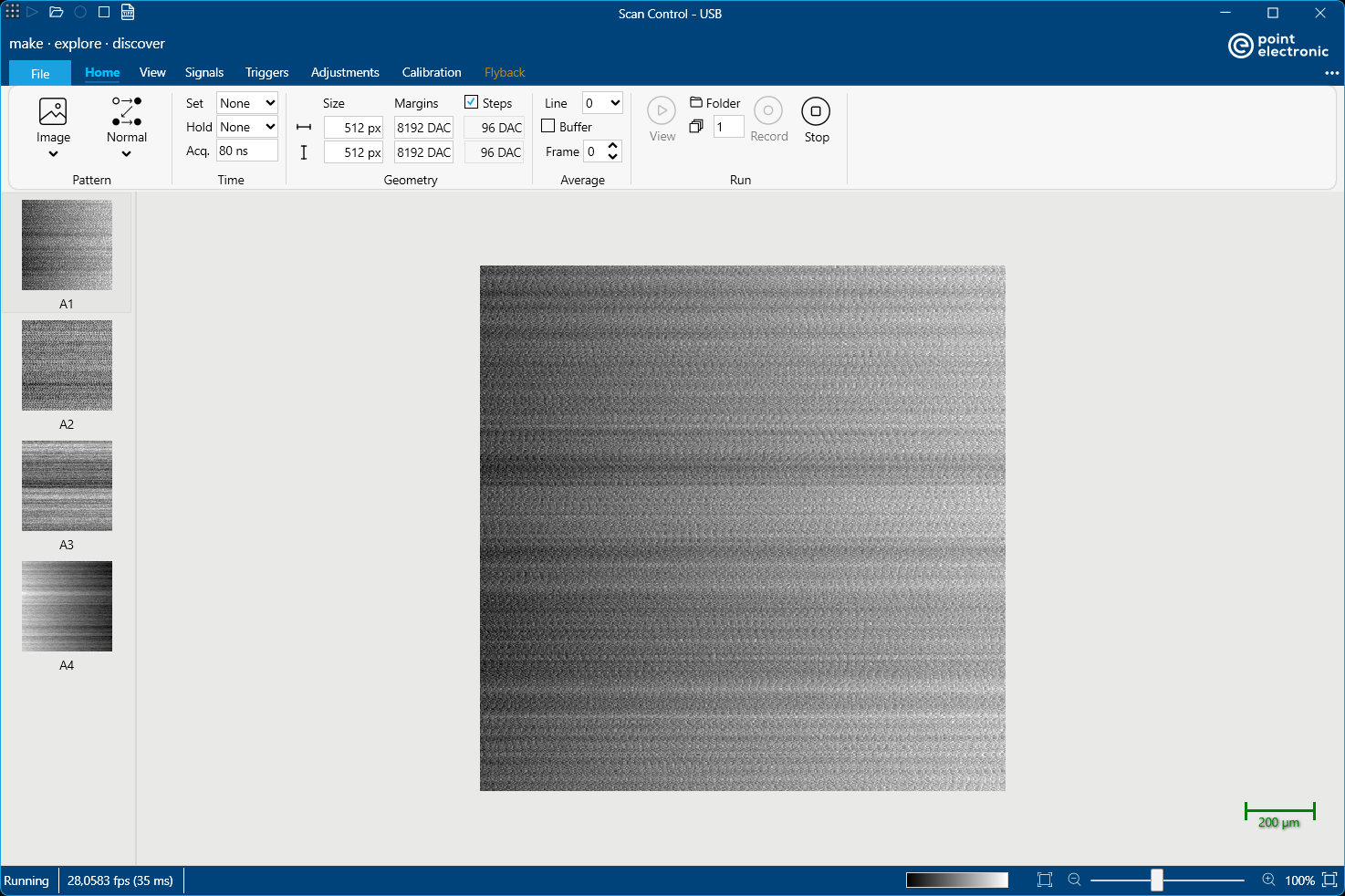

Scan Control app is provided for independent and open control of point electronic GmbH scan controllers, including REVOLON for TEM and DISS6 for SEM. I can be used over both TCP/IP and USB device connections.


Intended Use

Scan Control app is aimed for users wishing to access advanced scan settings not available in the usual integrated microscope control software. Key features include

  • Predefined Image scan modes for normal sawtooth, sub-scans, wobble and chopped patterns, including flyback control
  • Free Pixel maps scan modes with open XY coordinates, variable speeds and beam blanker control
  • Trigger and synchronization settings for fast 4D STEM cameras and beam blankers
  • Live scan transformations for rotation, tilt and skew
  • Multimodal quantitative acquisition of simultaneous detector signals
  • Gapless time-lapse acquisition for in-situ microscopy
  • Physical pixel size information with automatic TEM communication over EMGateway
  • Full screen, zoom, auto-range and color LUT views
  • File save to multipage TIFF with embedded XMP metadata

Scan Control is not intended for routine capture of images, for example routine simplified microscopy workflow. For a simple integrated and easy to learn user interface, please see the DISS6 software.
